Product
Hardness 38 Natural red rubber sheet roll
Polymer: Natural Latex rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.

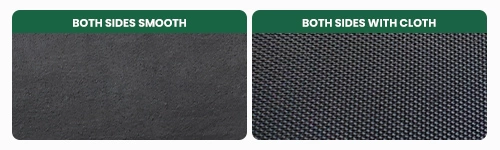

Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip

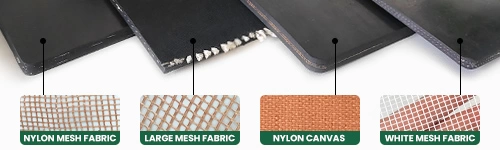

Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Natural Rubber Roll Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20201N-45 | 1.2g/cm³ | 45+/-5 Shore A | 14Mpa | 500% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 11.52kgs/m² |
| 1.5 | 1.2m | 10m | / | 18.72kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 25.92kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 40.32kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 54.72kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 69.12kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 83.52kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 112.32kgs/m² |
| 10 | 1.2m | 10m | 5PLY | 144kgs/m² |
| 12 | 1m | 1m | 8LY | 14.4kgs/m² |
| 15 | 1m | 1m | 10PLY | 18kgs/m² |
| 20 | 1m | 1m | 10PLY | 24kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

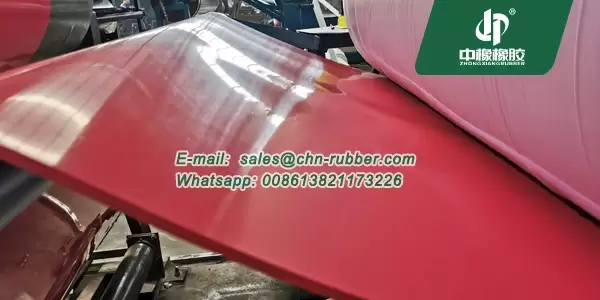

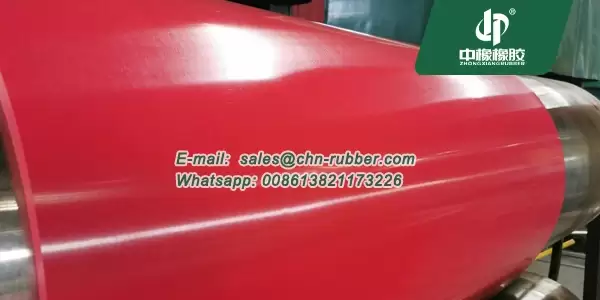

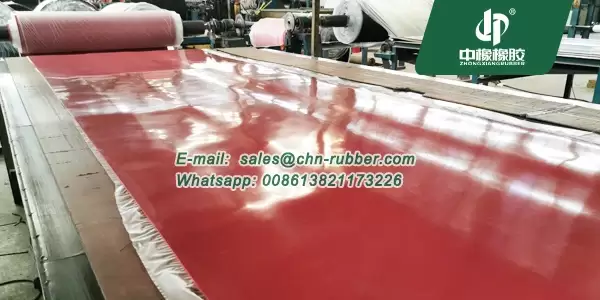

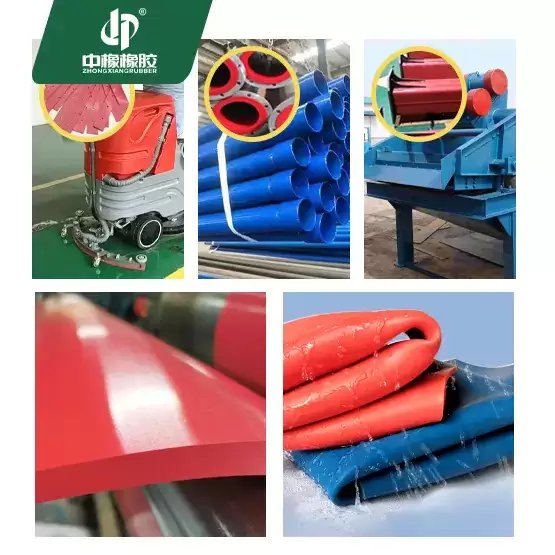

Red latex sheet is manufactured from premium natural rubber with an ultra-low specific gravity of 0.98 and a soft hardness rating of 38 Shore A. Its low density indicates a highly elastic and lightweight structure, ideal for applications requiring superior flexibility, stretch recovery, and surface conformity. Designed as part of our natural rubber sheeting line, this grade is particularly effective where impact absorption, soft sealing, and precision fitting are required. Common uses include protective pads, non-marking bumpers, and flexible gaskets in mechanical, textile, or packaging operations.
The bright red color adds high visibility, which is beneficial for work zones and production environments. Its soft touch and high elongation make it easy to fabricate, punch, or die-cut into custom parts, while still maintaining excellent rebound and wear properties.
