Product
Hardness 60 SBR black rubber sheeting roll
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

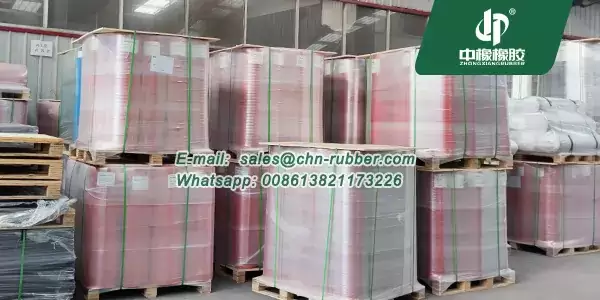

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-60 | 1.45 | 60+/-5 Shore A | 4-5Mpa | 280% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 15m | / | 20.88kgs/m² |
| 1.5 | 1.2m | 15m | / | 33.93kgs/m² |
| 1.7 | 1.2m | 15m | 1PLY | 39.15kgs/m² |
| 2 | 1.2m | 15m | 1PLY | 46.98kgs/m² |
| 3 | 1.2m | 15m | 1PLY | 73.08kgs/m² |
| 4 | 1.2m | 15m | 1PLY | 99.18kgs/m² |
| 5 | 1.2m | 15m | 2PLY | 125.28kgs/m² |
| 6 | 1.2m | 15m | 3PLY | 151.38kgs/m² |
| 7 | 1.2m | 15m | 3PLY | 177.48kgs/m² |
| 8 | 1.2m | 15m | 4PLY | 203.58kgs/m² |
| 10 | 1.2m | 15m | 5PLY | 255.78kgs/m² |
| 12 | 1.2m | 15m | 8PLY | 307.98kgs/m² |
| 15 | 1m | 2m | 10PLY | 43.5kgs/m² |
| 20 | 1m | 2m | ≥10PLY | 58kgs/m² |
| 25 | 1m | 2m | ≥10PLY | 72.5kgs/m² |
| 30 | 1m | 2m | ≥10PLY | 87kgs/m² |
| 35 | 1m | 2m | ≥10PLY | 101.5kgs/m² |
| 50 | 1m | 2m | ≥10PLY | 145kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
With a specific gravity of 1.45, SBR rubber gasket material roll offers a denser and more stable option among general-purpose rubber sheets, offering better resistance to compression set over time. Its 60 Shore A hardness strikes a practical balance between flexibility and support, making it suitable for dry, low-impact environments. Commonly used as a gasket base, cushioning layer, or lining pad, this material holds up well under light mechanical pressure where chemical and oil resistance are not required. Each roll is consistent in thickness and surface finish, making it easy to work with in both manual and machine cutting processes.
Key Features:
1.45 specific gravity ensures solid, durable sheet structure for medium-duty applications
60 Shore A hardness provides balanced flexibility and dimensional stability
Uniform surface and thickness for accurate gasket fabrication
Non-oil-resistant and non-chemical-resistant; ideal for dry indoor use
Complies with ASTM standard; SGS, REACH, RoHS2.0 certified
