Product

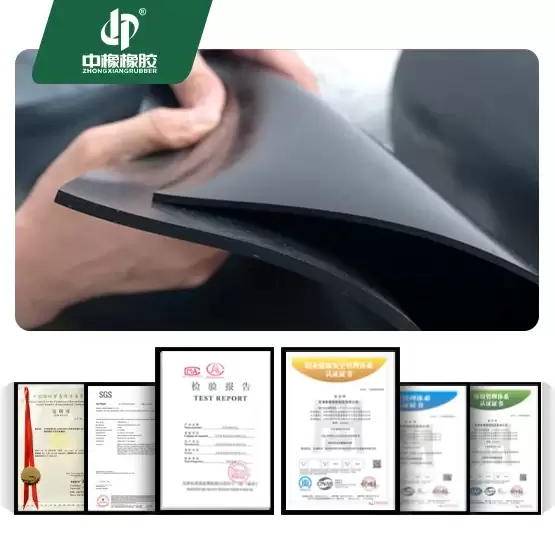

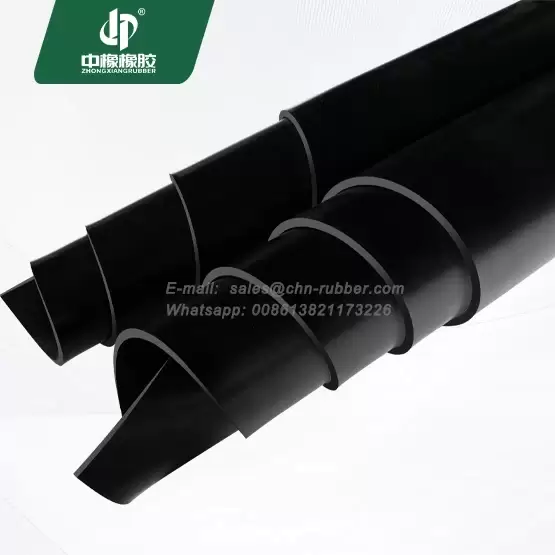

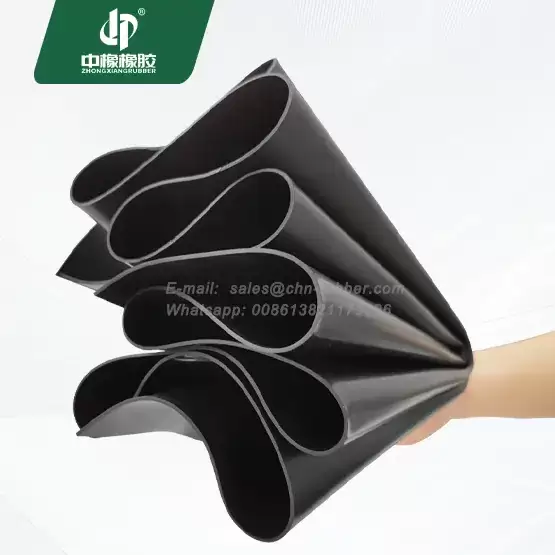

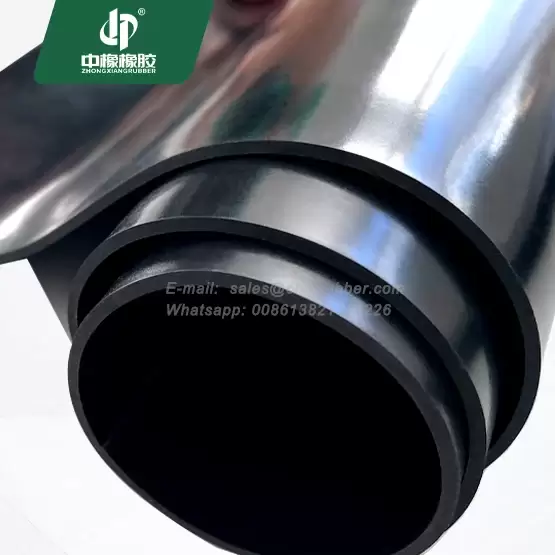

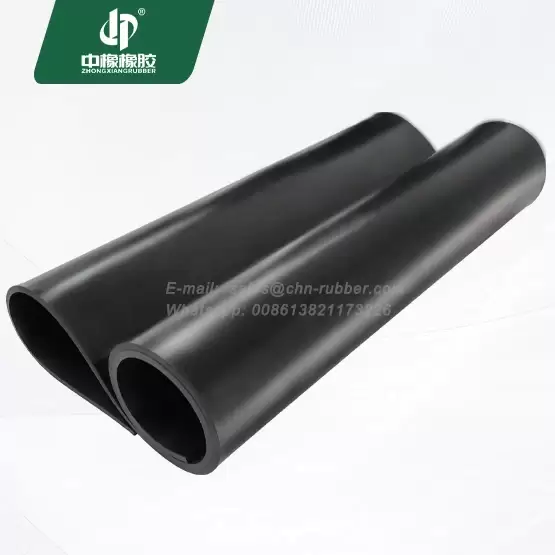

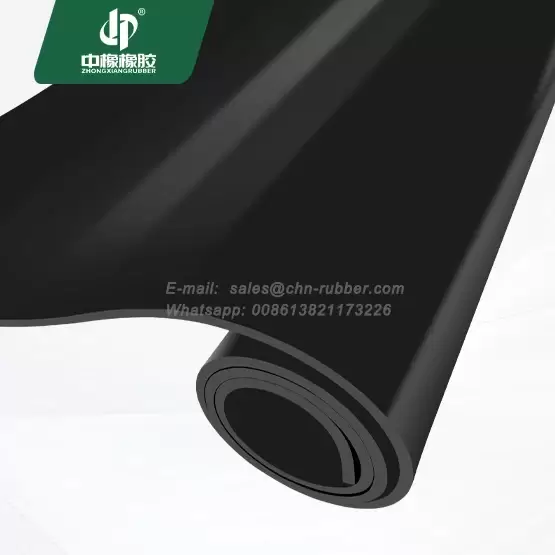

Hardness 60 Neoprene black rubber sheet
Polymer: Neoprene rubber
Color: Black
Thickness: 3mm
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

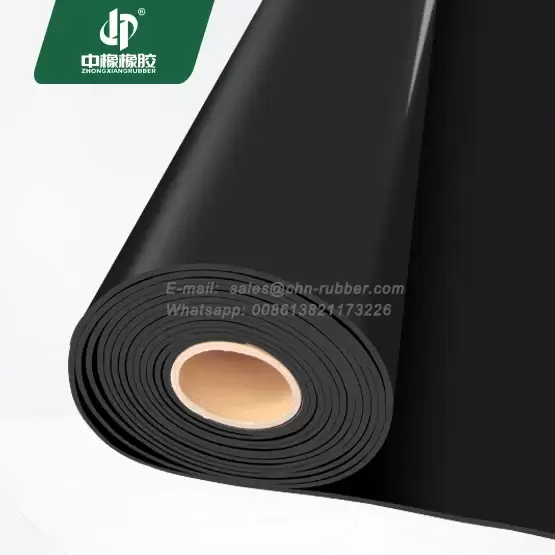

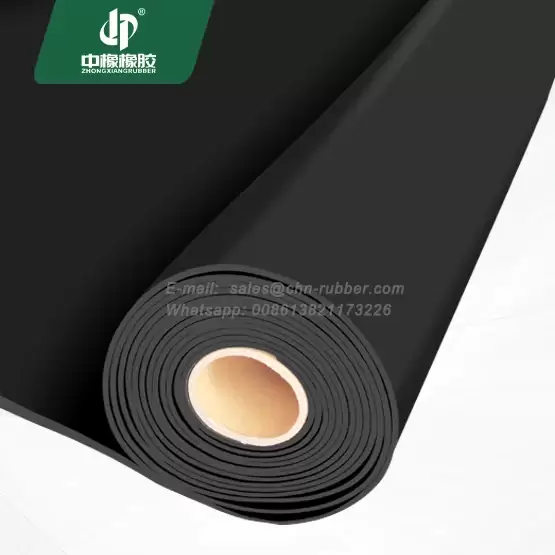

Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

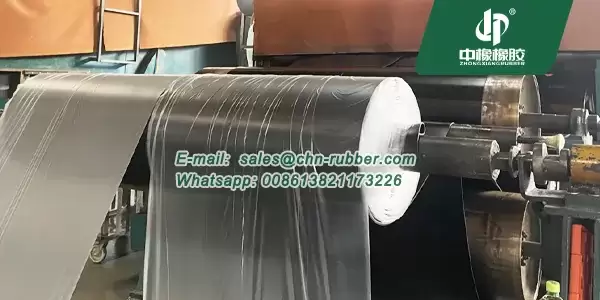

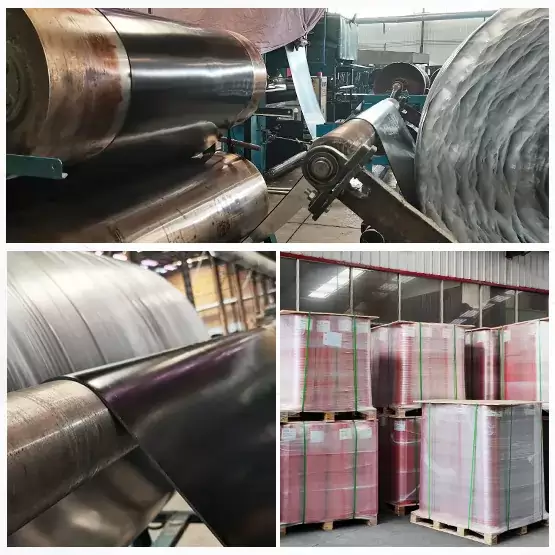

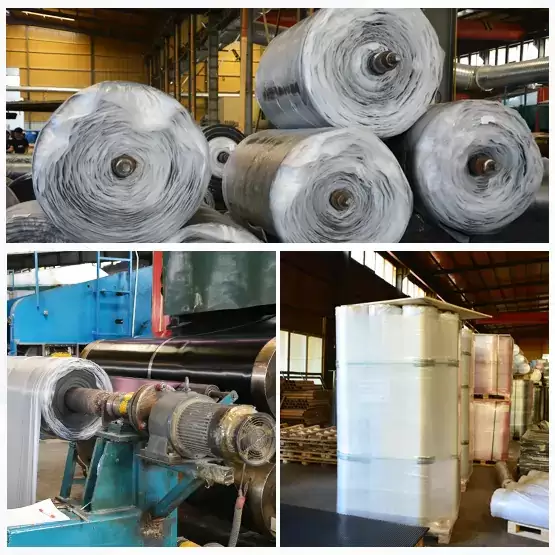

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Neoprene Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101C-60 | 1.4g/cm³ | 60+/-5 Shore A | 5-6Mpa | 320% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 16.8 |
| 2 | 1.5m | 10m | 1PLY | 37.8 |
| 3 | 1.5m | 10m | 1PLY | 58.8 |
| 4 | 1.5m | 10m | 1PLY | 79.8 |
| 5 | 1.5m | 10m | 1PLY | 100.8 |
| 6 | 1.5m | 10m | 2PLY | 121.8 |
| 8 | 1.5m | 10m | 3PLY | 163.8 |
| 10 | 1.5m | 10m | 4PLY | 205.8 |
| 12 | 1m | 2m | 5PLY | 33.6 |
| 15 | 1m | 2m | 8PLY | 42 |
| 20 | 1m | 2m | 10PLY | 56 |
| 25 | 1m | 2m | 10PLY | 70 |
| 30 | 1m | 2m | 10PLY | 84 |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
Chemical Properties
| Polymer content | ZXZRS20001PC-20% | ZXZRS20001PC-30% | ZXZRS20001PC-50% | ZXZRS20001PC-70% | ZXZRS20001PC-100% |
| Aliphatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Aromatic Hydrocarbons | Regular | Regular | Excellent | Excellent | Excellent |
| Lubricating Oils | Regular | Regular | Regular | Regular | Excellent |
| Outdoor Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Ozone Exposure | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Acids | Regular | Regular | Regular | Excellent | Excellent |
| Diluted Alkali | Regular | Regular | Regular | Excellent | Excellent |
| Vegitable Oil | Poor | Poor | Regular | Excellent | Excellent |
| Animal Oil | Poor | Poor | Regular | Excellent | Excellent |
Note:
1. The chemical resistance values provided are intended as general reference only, based on standard laboratory conditions.
2. Actual performance may vary depending on chemical concentration, temperature, exposure time, and specific working conditions.
3. It is the responsibility of the user to verify material compatibility before application.
4. The manufacturer assumes no liability for damages or failures resulting from improper material selection or usage conditions.
5. Detailed technical advice are available upon request.
Neoprene rubber sheet 3mm thick with a density of 1.4 g/cm³ and 60 Shore A hardness offers a practical balance between flexibility and mechanical performance. As a thin neoprene sheet, it is suitable for cutting into gaskets, buffer pads, and strips used in assembly lines, industrial equipment, or protective liners.
Compared to heavier grades, this formulation delivers lower mass per square meter, which improves workability during manual or automated processing. The moderate hardness ensures the sheet can conform to slight surface irregularities without collapsing under light pressure. Its composition also shows resistance to mild weather exposure, some oils, and vibration, making it a common choice in workshops, OEM parts packaging, and equipment enclosures. Whether used as a neoprene sheet 3mm sealing layer, spacing component, or shock-absorbing pad, this material provides an ideal combination of light weight and reliable physical behavior. Suitable for users who prioritize efficiency in installation, die-cutting, or CNC knife processing.
