Product

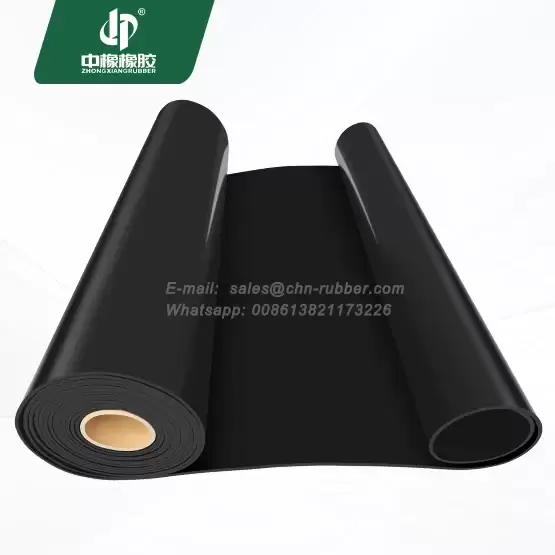

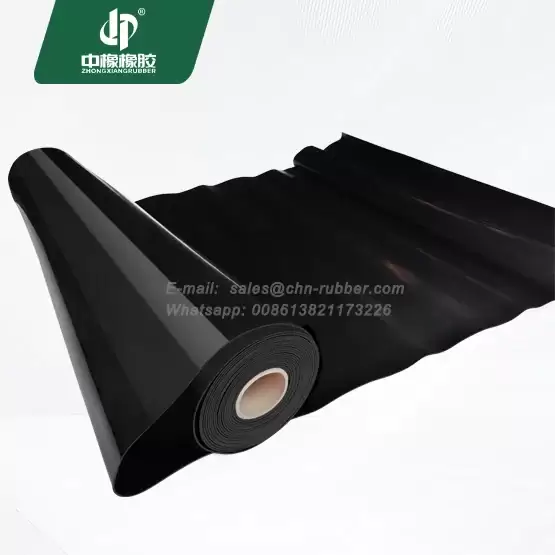

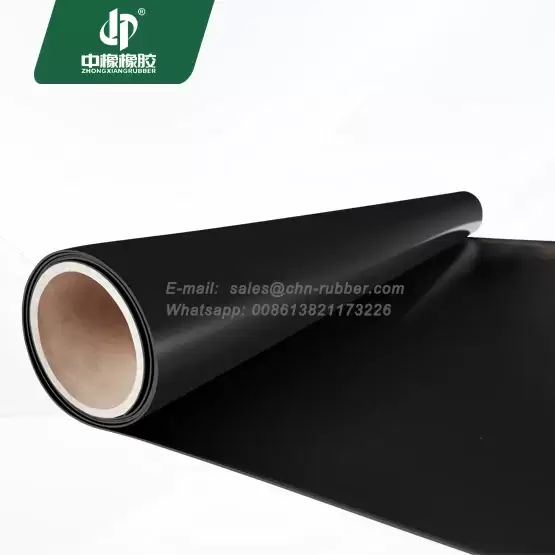

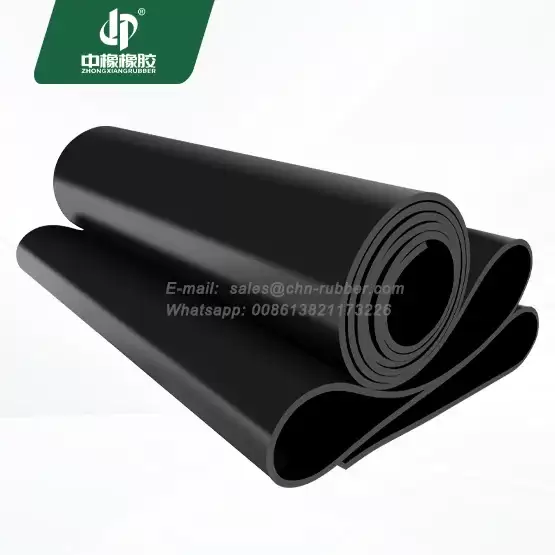

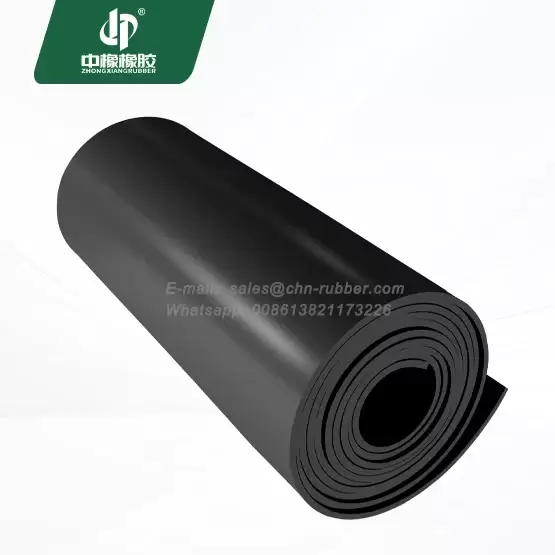

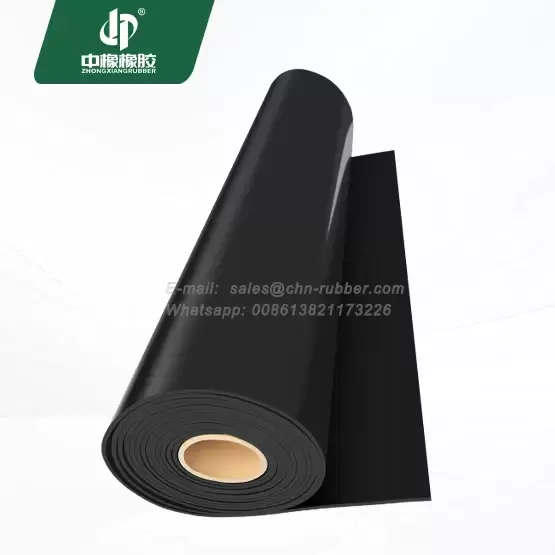

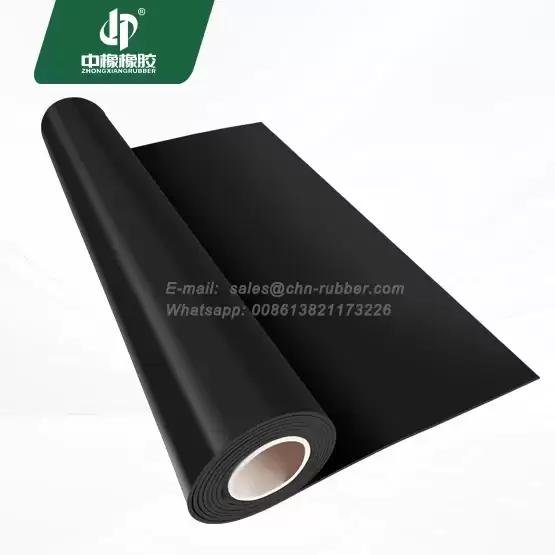

Hardness 80 SBR black rubber sheeting roll
Polymer: Styrene Butadiene rubber
Color: Black
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Embedding layer: Nylon canvas / Mesh fabric / Nylon mesh fabric / Encrypted canvas

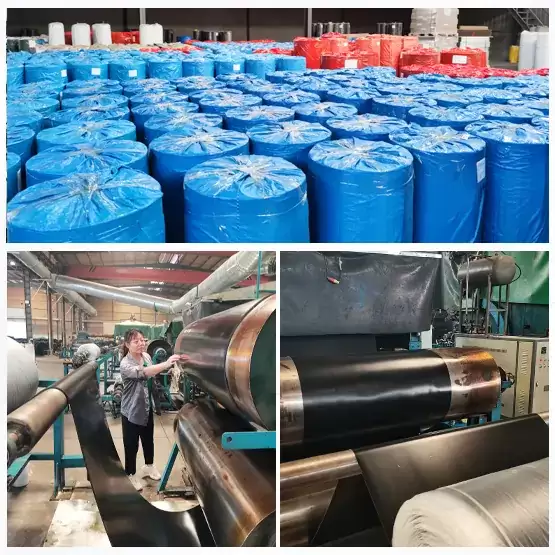

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
SBR Solid Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20101S-80 | 1.9g/cm³ | 80+/-5 Shore A | 1-1.5Mpa | 100% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.5m | 10m | / | 22.8kgs/m² |
| 1.5 | 1.5m | 10m | / | 37.05kgs/m² |
| 1,7 | 1.5m | 10m | 1PLY | 42.75kgs/m² |
| 2 | 1.5m | 10m | 1PLY | 51.3kgs/m² |
| 3 | 1.5m | 10m | 1PLY | 79.8kgs/m² |
| 4 | 1.5m | 10m | 1PLY | 108.3kgs/m² |
| 5 | 1.5m | 10m | 2PLY | 136.8kgs/m² |
| 6 | 1.5m | 10m | 3PLY | 165.3kgs/m² |
| 8 | 1.5m | 10m | 4PLY | 222.3kgs/m² |
| 10 | 1.5m | 10m | 5PLY | 279.3kgs/m² |
| 12 | 1m | 2m | 8PLY | 45.6kgs/m² |
| 15 | 1m | 2m | 10PLY | 57kgs/m² |
| 20 | 1m | 2m | 10PLY | 76kgs/m² |
| 25 | 1m | 2m | 10PLY | 95kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

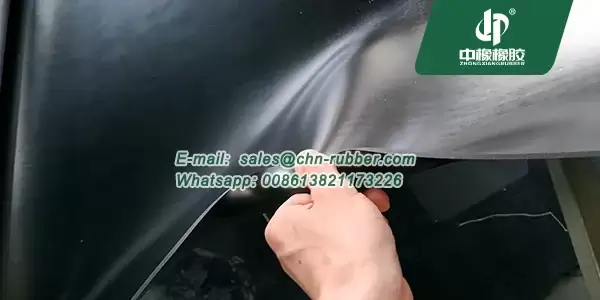

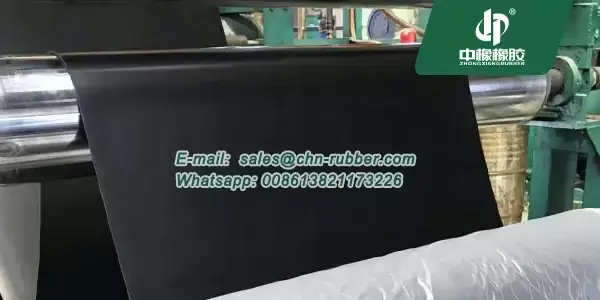

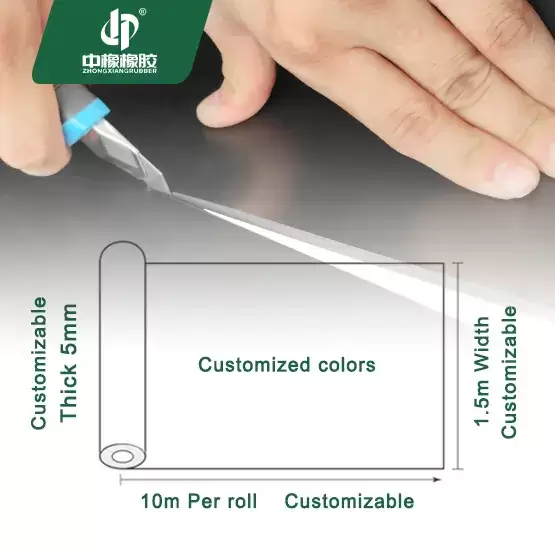

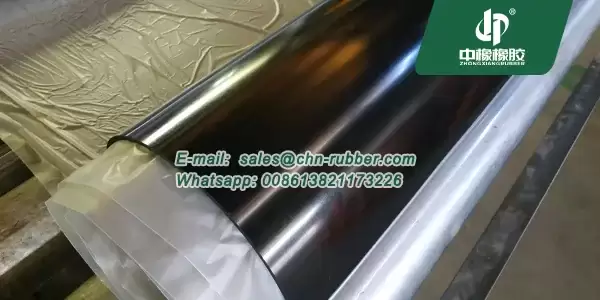

Rubber sheet 5mm thick is made from standard-grade SBR material with a specific gravity of 1.9 and a Shore A hardness of 80. Compared to lower-density grades, this sheet is more rigid but lacks the elasticity and wear resistance of higher-quality compounds. It is primarily used in industrial settings where cost control is more critical than long-term durability or performance under stress. The solid rubber sheet structure maintains basic compression and impact absorption functions, making it suitable for temporary gaskets, simple padding layers, low-speed mechanical isolation, or low-wear lining surfaces. The 5mm thickness offers some buffer capacity, while the high hardness ensures a firm surface response under moderate static loads.
Recommended for basic industrial applications where the material will not be exposed to oils, chemicals, or outdoor conditions. This type is often used in warehouse flooring underlays, basic sealing strips, or as an economic solution for non-critical insulation purposes. It is manufactured to ASTM standard and meets SGS / REACH / RoHS2.0 compliance for general safety and environmental requirements.
