Product
Hardness 65 Green anti static rubber mat
Polymer: Synthetic rubber
Color: Green
Top Cover: 10^7 ~ 10^9
Back Cover: 10^3 ~ 10^5
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.

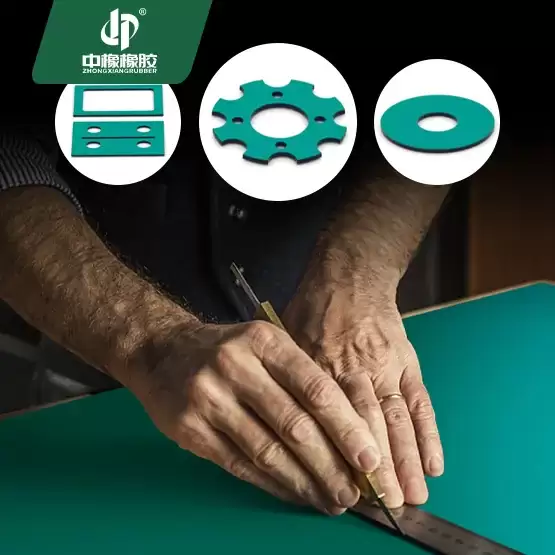

Customizable Shapes: Roll / Sheet / Strip

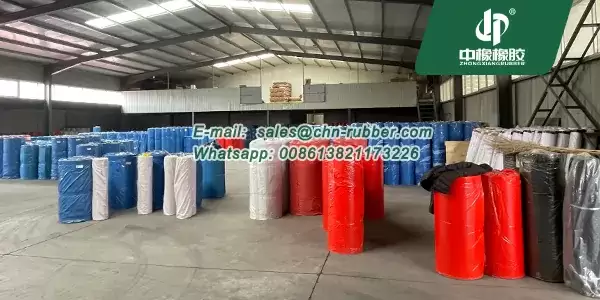

Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
Anti Static Rubber Sheet Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20404ES-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 14.4kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 32.4kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 50.4kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 68.4kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 86.4kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 104.4kgs/m² |
| 7 | 1.2m | 10m | 3PLY | 122.4kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 140.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 150kgs/m² |
| 12 | 1m | 10m | 8PLY | 180kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 20 | 1m | 2m | 10PLY | 60kgs/m² |
| 25 | 1m | 2m | 10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

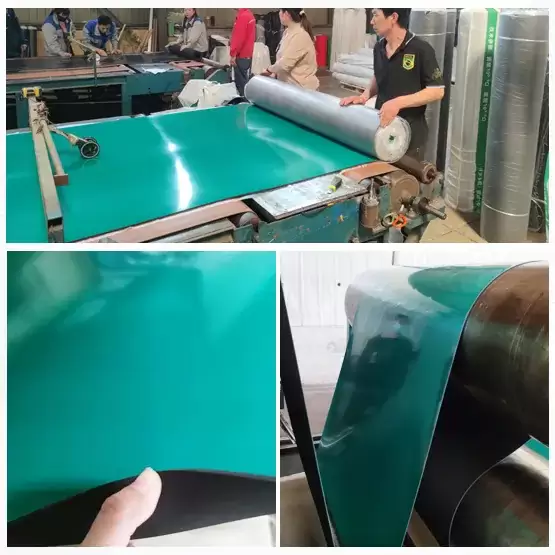

Tianjin China Rubber Co.,Ltd manufactures green anti static rubber mat sheets engineered to safely dissipate electrostatic charges in controlled work areas. Ideal for electronics, semiconductor, and communication industries, the material helps prevent ESD damage to sensitive components.

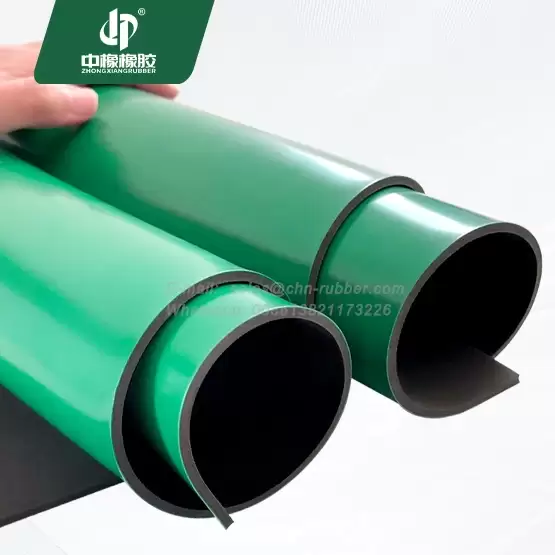

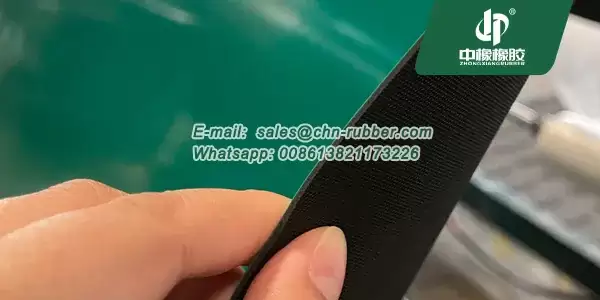

Each anti static rubber mat roll is made with a dual-layer structure: a static-dissipative top layer and a conductive bottom layer. This composition allows reliable grounding of accumulated static, improving workplace safety and protecting equipment. With a specific gravity of 1.5 g/cm³ and Shore A hardness of 65±5, the mat provides a stable surface that resists wear from foot traffic and tool impact. It performs well in high-traffic zones such as production lines, testing benches, and repair stations.

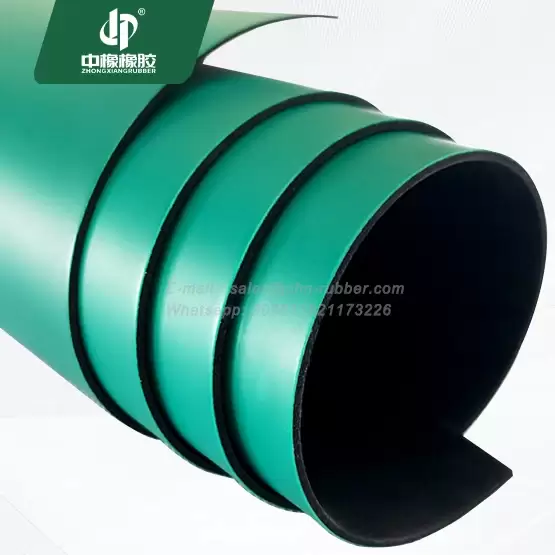

Available in rolls for efficient installation, this anti static mat roll maintains consistent electrical resistance across the surface. It is easy to clean, resistant to common chemicals, and suitable for both flooring and table coverings. Our offers customization in thickness, width, and resistance levels according to ESD safety specifications. The product meets key industrial standards for anti-static performance.
