Product

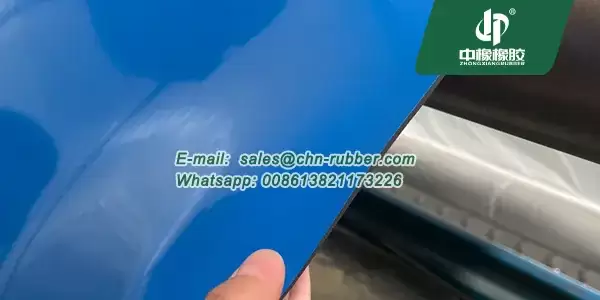

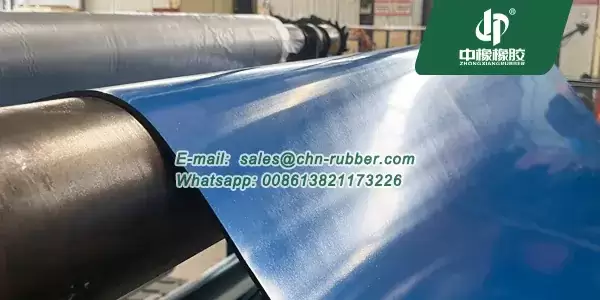

Blue color ESD bench rubber matting roll
Polymer: Synthetic rubber
Color: Blue
Top Cover: 10^7 ~ 10^9
Back Cover: 10^3 ~ 10^5
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
ESD Rubber Mat Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20404ES-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 14.4kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 32.4kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 50.4kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 68.4kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 86.4kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 104.4kgs/m² |
| 7 | 1.2m | 10m | 3PLY | 122.4kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 140.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 150kgs/m² |
| 12 | 1m | 10m | 8PLY | 180kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 20 | 1m | 2m | 10PLY | 60kgs/m² |
| 25 | 1m | 2m | 10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.
The esd rubber mat offered by Tianjin China Rubber Co.,Ltd is specially engineered for use in environments where electrostatic control is critical. This product is commonly applied on work surfaces, benches, and technical stations in electronics assembly and testing facilities. Made with a two-layer rubber construction, each esd bench matting roll includes a static-dissipative top and a conductive backing. This ensures a controlled discharge of static electricity and helps maintain safe grounding throughout daily use.
The blue esd rubber mat provides a clean, professional appearance while delivering consistent surface resistance in compliance with ESD safety standards. It supports delicate electronic processes by minimizing the chance of electrostatic damage during equipment handling and circuit board assembly. Supplied in continuous esd bench matting roll format, the material is easy to cut and shape to fit custom bench layouts. It resists abrasion, soldering heat, and chemical spills, maintaining functionality even in high-traffic areas. Tianjin China Rubber Co.,Ltd ensures every esd rubber mat roll undergoes quality and resistance testing, meeting industry needs for static control and long-term durability.
