Product

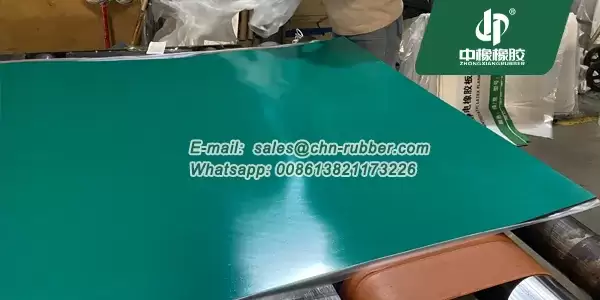

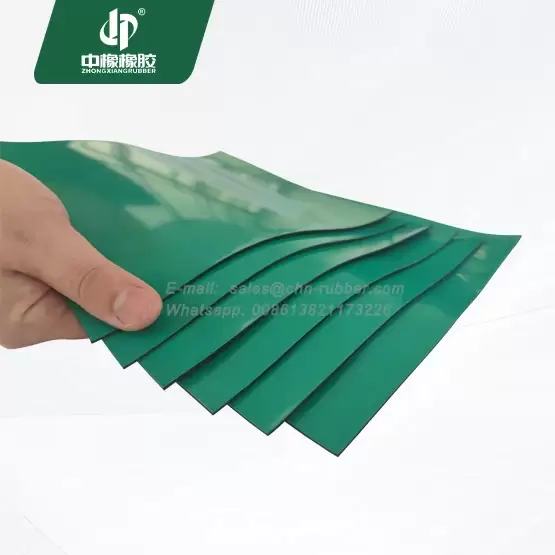

Specific gravity 1.5 green ESD mat roll
Polymer: Synthetic rubber
Color: Green
Top Cover: 10^7 ~ 10^9
Back Cover: 10^3 ~ 10^5
Thickness: Thickness ranges from 1mm to 100mm; above 15mm offered in sheet form.
Standard Size:
Width: 1mtrs 1.2mtrs 1.4mtrs 1.5mtrs 1.6mtrs 1.8mtrs 2.0mtrs
Length: 5mtrs 10mtrs 15mtrs 20mtrs; Custom dimensions available upon request.
Surface: Both sides smooth, or one/both sides with cloth, or one side with anti-slip texture.
Customizable Shapes: Roll / Sheet / Strip
Packing Info: Custom packing includes plastic film, PP bags, and pallets.
Color, logo, and labels or special markings can be customized upon request.
ESD Rubber Mat Performance Parameters & Specification
| Code | Specific Gravity | Hardness | Tensile Strength | Elongation at Break |
| ZXZRS20404ES-65 | 1.5g/cm³ | 65+/-5 Shore A | 3Mpa | 200% |
| Thickness | Width | Length | Insertion | Weight |
| 1 | 1.2m | 10m | / | 14.4kgs/m² |
| 2 | 1.2m | 10m | 1PLY | 32.4kgs/m² |
| 3 | 1.2m | 10m | 1PLY | 50.4kgs/m² |
| 4 | 1.2m | 10m | 1PLY | 68.4kgs/m² |
| 5 | 1.2m | 10m | 2PLY | 86.4kgs/m² |
| 6 | 1.2m | 10m | 3PLY | 104.4kgs/m² |
| 7 | 1.2m | 10m | 3PLY | 122.4kgs/m² |
| 8 | 1.2m | 10m | 4PLY | 140.4kgs/m² |
| 10 | 1m | 10m | 5PLY | 150kgs/m² |
| 12 | 1m | 10m | 8PLY | 180kgs/m² |
| 15 | 1m | 2m | 10PLY | 45kgs/m² |
| 20 | 1m | 2m | 10PLY | 60kgs/m² |
| 25 | 1m | 2m | 10PLY | 75kgs/m² |
1. All specifications and dimensions above are subject to standard ± tolerances.
2. All data are provided as typical values within specified ranges; actual available specifications may vary depending on standard production grades.
3. This data sheet applies only to the rubber sheet products listed in the table. Other specifications can be manufactured upon request.
4. The weights provided in the table are theoretical values, actual product weights may vary due to production tolerances. In the case of customized rubber sheets, variations in width, length, thickness, or other specified parameters will impact the final weight. For reference only.

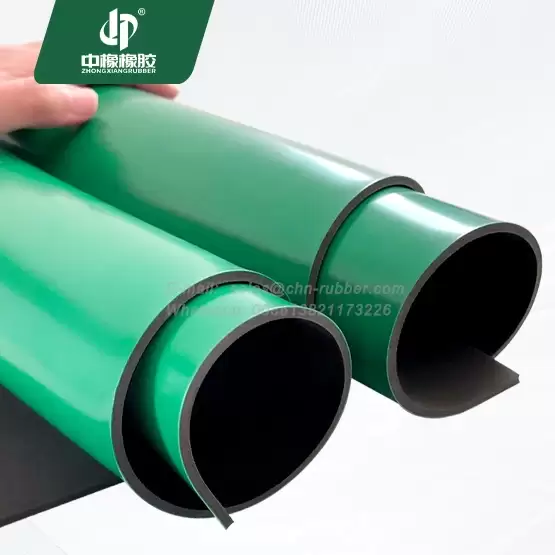

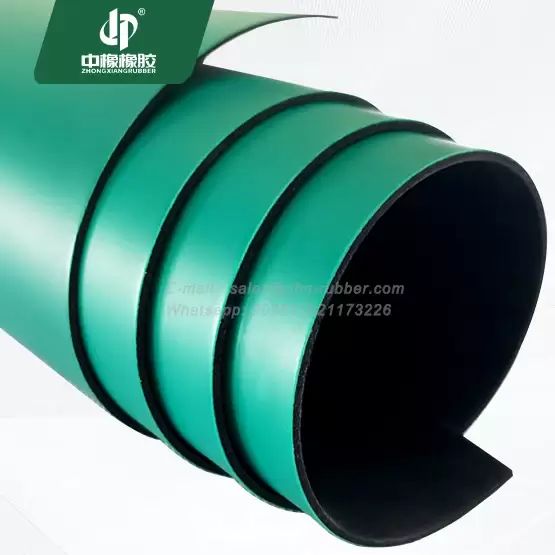

Green esd mat from Tianjin China Rubber Co.,Ltd is designed to provide stable electrostatic discharge control in manufacturing and laboratory environments. It is particularly suited for electronics assembly areas, testing stations, and semiconductor handling. Each esd mat roll is built using a high-quality dual-layer system, with a dissipative top layer and conductive backing. This construction ensures continuous static dissipation and effective grounding, reducing the risk of damage to static-sensitive devices.
With high resistance stability, this green esd mat supports safe ESD performance across a wide range of humidity and temperature conditions. The surface texture offers good grip while remaining easy to clean, supporting long-term use without deterioration. The esd mat roll format allows for fast installation in large workspaces, whether on flooring or workbenches. Custom widths, thicknesses, and resistance levels are available to meet specific ESD protocols and workspace dimensions.
Tianjin China Rubber Co.,Ltd ensures every green esd mat is tested according to industrial ESD standards, delivering reliable protection for equipment and operators alike.
